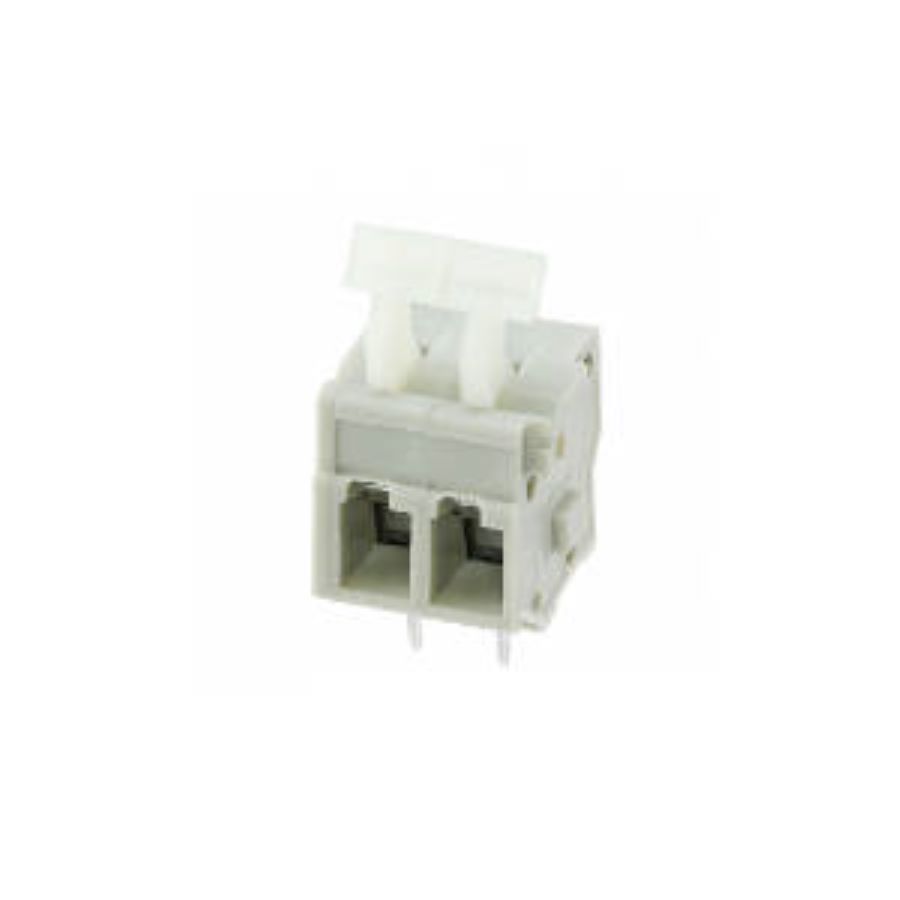

2834082-1
Manufacturer:
TE Connectivity
Mfr.Part #:
2834082-1
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 20 A 300 V 28 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Tray |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5 mm |
| Current Rating | 20 A |
| Max Current Rating | 20 A |
| Approvals | UL |
| Orientation | Horizontal with Board |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Gray |
| Number of Contacts | 2 |
| Connector Type | Connector, Receptacle |
| Wire/Cable Gauge | 12 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Contact Current Rating | 20 A |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Connection Method | Push-In |
| Wire Gauge Range | 28 AWG to 12 AWG |
Stock: 339
Distributors
pcbx
pcbxUnit Price$0.84434
Ext.Price$0.84434
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84434 | $0.84434 |
| 10 | $0.61192 | $6.11920 |
| 25 | $0.53260 | $13.31500 |
| 50 | $0.48117 | $24.05850 |
| 100 | $0.43730 | $43.73000 |
| 300 | $0.40637 | $121.91100 |
| 500 | $0.37763 | $188.81500 |
| 1000 | $0.35092 | $350.92000 |
| 3000 | $0.32610 | $978.30000 |
| 5000 | $0.30302 | $1515.10000 |
